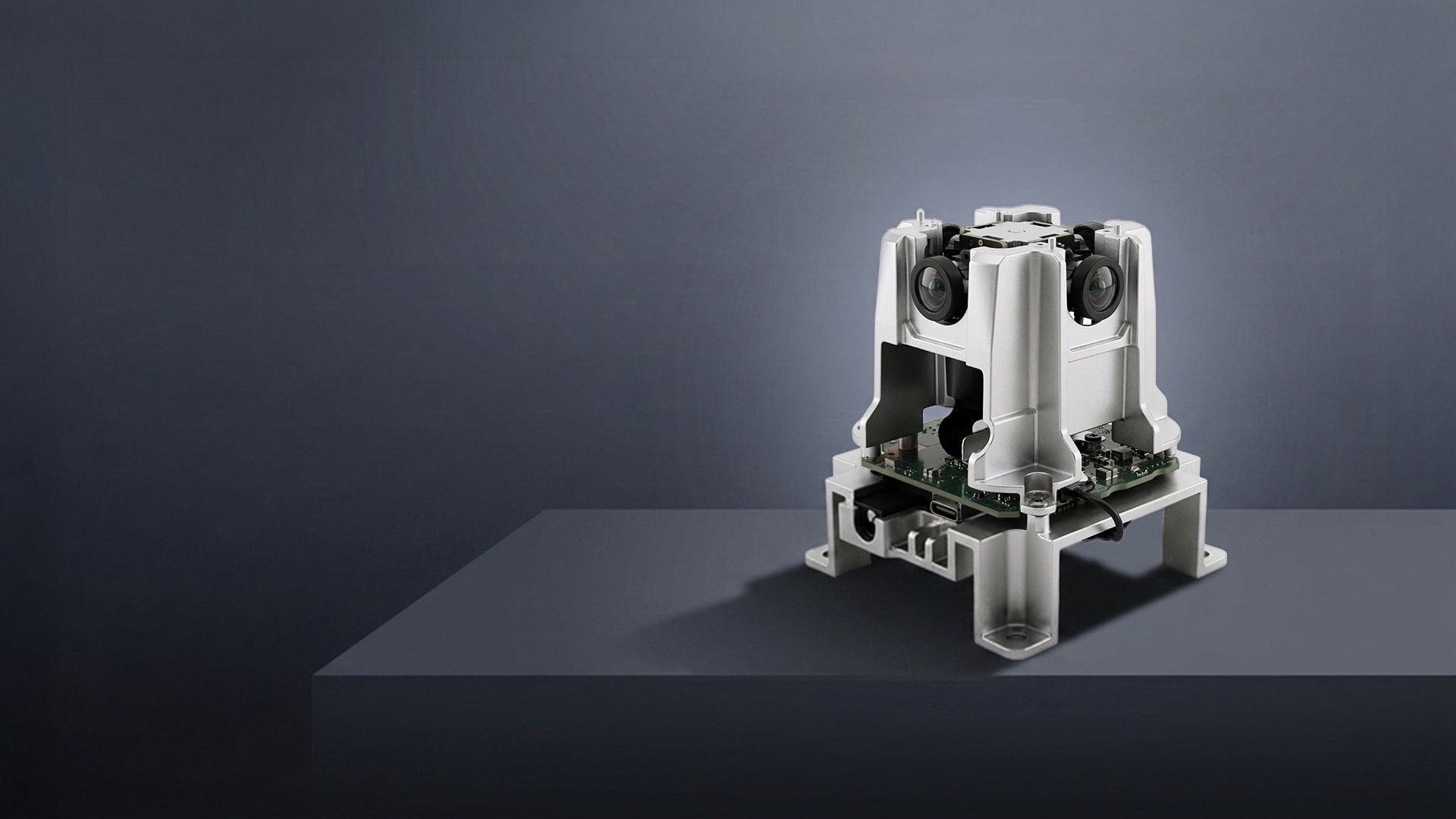

RX1050P

An embedded 360° camera module designed for robots, drones, unmanned platforms, and customer-defined product integration.

* Mounting base not included.

Part Number (P/N)	C1PA08501-CM
INTERFACE	USB3.0
POWER	DC 12v
POWER CONSUMPTION	8w
VIDEO OUTPUT	640x320@30fps 1920x960@30fps 1920x1080@30fps 3840x1920@30fps 1696x7200@15fps
CONTROL	USB Video Class (UVC) compliant
OPTICAL FEATURES	360° (Horizontal) x 85° (Vertical) field of view F2.5 aperture 1/2.7" 5M CMOS sensor x4
AUDIO	N/A
PHYSICAL FEATURES	78 x 75 x 86 mm Approximately 350 g
TEMPERATURE	TBC
HUMIDITY	N/A
MOUNTING NOTE	Cupola360 does not provide a standard physical base for RX1050P. (A 3D printing file is available so customers can print and customize the mounting base according to their own platform, enclosure, or mechanical design requirements.)
